BACnet PLC – C2.LDC.01

DALI power supply + Master + Gateway
Programmable device
DALI master with possibility of sending all standard DALI commands
BACnet to DALI gateway
Modbus to DALI gateway
Programming is done using PC application
Configuration, programming and debugging through a USB port
Stand alone operation option

Description

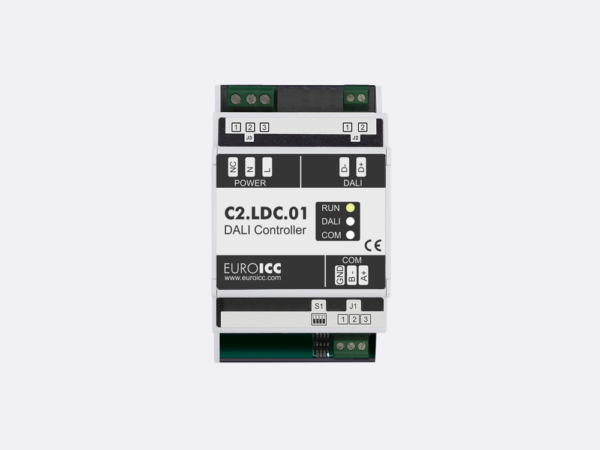

DALI Master Gateway C2.LDC.01 is a programmable device designed for a wide range of tasks in building automation, Smart Home and Guest Room Management System, with a wide range of light control options. It converts BACnet or Modbus to DALI protocol.

It also works as a power supply for DALI bus, with short circuit protection. With accompanying jPLCPro software, it can be programmed for a variety of tasks including dimming, delayed actions, special programs, etc.

It can be connected to BMS. Up to 64 DALI devices is supported.

Additional information

Electrical Specifications

title

Power supply

110-230 VAC, 50-60 Hz, 7W max

Communication Channel

title

RS 485

BACnet MS/TP or Modbus Slave RTU/ASCII. Programmable baud rate (9600, 19200, 38400, 76800, 115200), DIP switch selectable use of termination and polarization resistors

DALI

Supports up to 64 DALI devices 19 V/250 mA short circuit protected

USB

USB device, mini USB connector, service port

Additional Specifications

title

Operating temperature

0.. +55 °C

Storage temperature

-30.. +85 °C

Operating humidity

Max 95% r.H., no condensation

Protection degree

IP20

Mounting

DIN rail, for indoor use only

Weight

300 g

Dimensions

53.7 x 90 x 62.2 mm
