EST-150 Smart Thermostat for Electric Storage Water Heaters

EST-150 Smart Thermostat for Electric Storage Water Heaters

  • Anti-Legionella function
  • Freeze protection function
  • Increased accuracy due to electronic temperature measurement
  • Smart function: advanced software for heating optimization, reduces energy consumption up to 15%
  • Functional temperature controlled by software
  • ErP and Ecodesign compliant solution
  • Remote control via Android and iOS mobile apps
  • LCD display and digital control with user-friendly interface
  • 5 water heater operating modes

Description

EST-150 smart thermostat solution consists of 2 elements, connected by a quick faston connection cable.

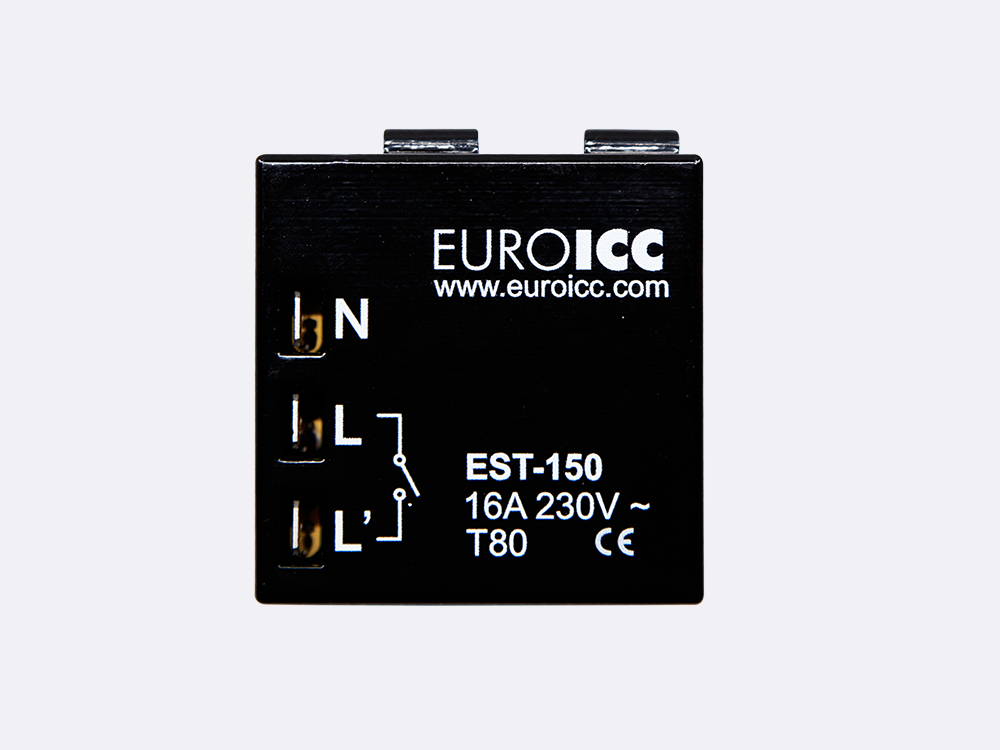

The first element is the electronic functional capillary type thermostat. It controls the heater and collects data about water temperature.
The second element is electronics with LCD TFT display 1.44'', 4 buttons, user interface, and Wi-Fi module. Collected data from the first element is being processed in the second one.
Mobile applications, as part of EST-150 solution, provide the complete product functionality. The conventional mechanical safety capillary type thermostat should be used additionally as a safety component in the water heater.

Additional information

PRODUCT SPECIFICATION

title

Thermostat type

Single-phase electronic thermostat with flexible probe

Rated Current / Voltage

16A / 230V ~

Safety cut-out

External safety thermostat

Functional cut-off

Unipolar

Max functional temperature / Accuracy

75°C / ±2°C

Temperature selection range

From 15°C to Max

Thermal hysteresis

4 °C

The standard length of the probe’s cable

500 mm

Electrical connection

Quick faston connection

Display

TFT LCD 1.44”

Display panel IP Class

IPX4

Operation Settings

With HMI and mobile APP

Wi-Fi protocol

IEEE 802.11 b/g/n

Approvals

Conformity CE
IEC 60730-2-9:2015 + A1:2018
IEC 60730-1:2013 + A1:2015

Downloads

Documentation

Technical Data Sheet for EST-150 Smart Thermostat for Electric Storage Water Heaters
